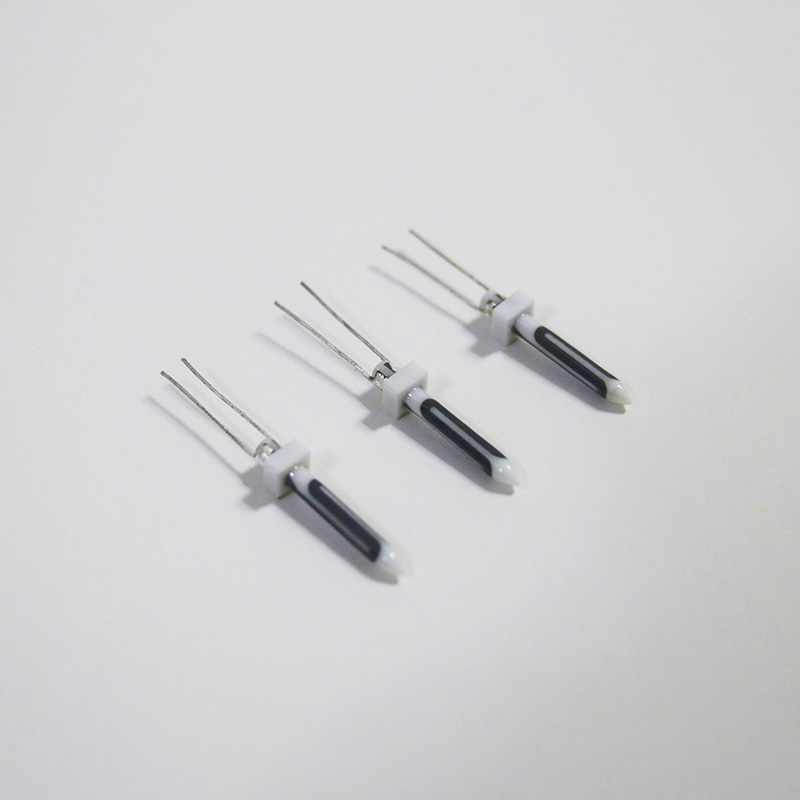

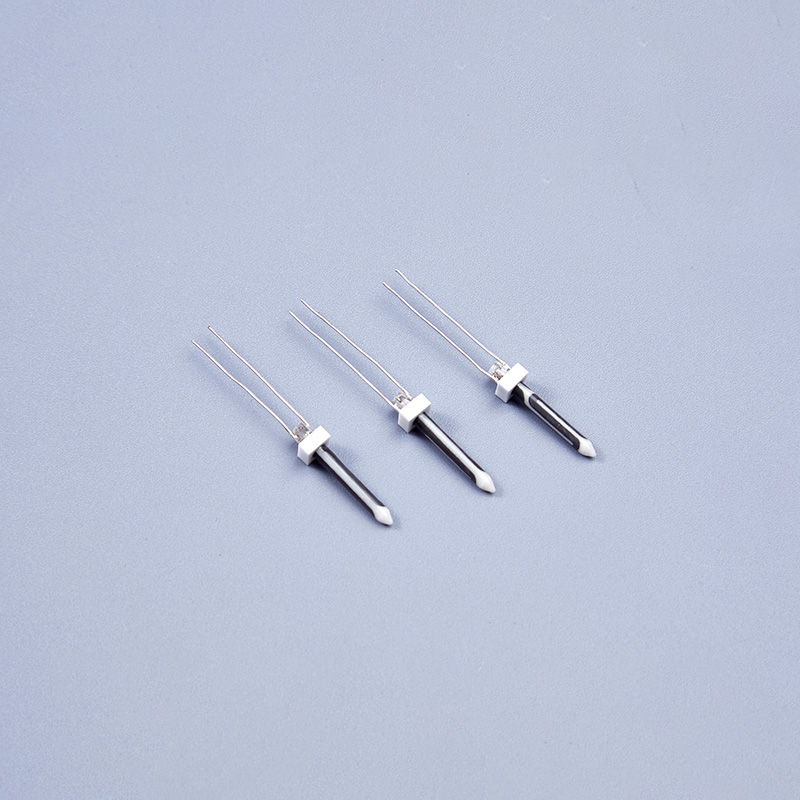

Zironia Rod Pin Ceramic Heater
Fast temperature rise:Resistance stability
Internal hollow design:Reduce energy consumption and reduce electrode temperature.
Zironia material
Electrode high temperature silver brazing:Strong tension and internal resistance is small, Introduction of Keycore Ⅱ (HTCC ZCH) of high temperature co-fired zirconia heating element.
Fast temperature rise; Internal hollow design; Zironia material; Electrode high temperature silver brazing.
The bending strength can reach 15KG. It is three times larger tip zirconia heater (for IQOS) and 1.5 times larger than tip alumina heater.
Low energy consumption, 29% lower than Keycore I.
Heating up fast, compared to alumina Keycore I, it fast 7.5 seconds up to 350 ℃, heating rapid increased by 1.7 times.
Flange temperature is low, 30seconds in 350degrees, the flange temperature less than 100 ℃.
| Diameter | 2.15±0.1mm |
| Length | 19±0.2mm |
| Heating Resistance | (0.6-1.5)±0.1Ω |
| Heating TCR | 1500±200ppm/℃ |
| Sensor Resistance | (11-14.5)±0.1Ω |
| Sensor TCR | 3500±150ppm/℃ |
| Lead Soldering Withstand Temperature | ≤100℃ |
| lead tensile force | (≥1kg) |
Testing conditions: the working voltage shall make the surface temperature of the product reach 350 degrees, and then test the temperature of the flange after 30S of stability.
The flange temperature of Keycore II (HTCC ZCH) is lower when it works. The flange temperature after 30 seconds of maintaining a temperature of 350℃ at a working voltage of 3.7v is no more than 100℃, while that of Keycore I is around 210℃ under the same conditions.
